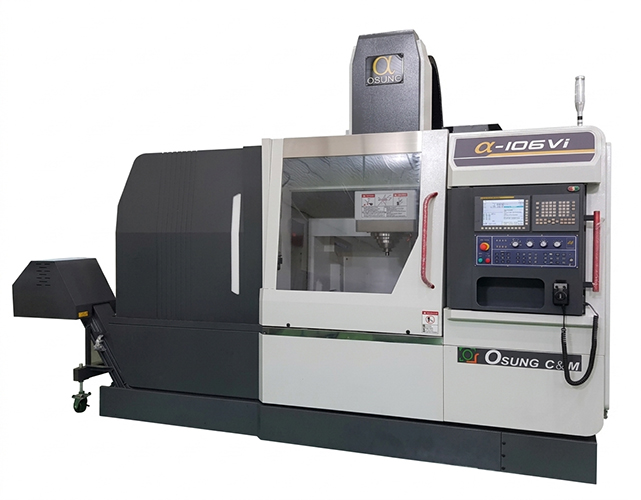

α-106V Plus
High Speed Machine Center
Feature
Outstanding Machine Feature
- High rigidity structure, can resist cutting vibration, greatly improve tool life and production efficiency.
- Built-in high-speed spindle
- The unique design of the worktable makes it easy for operators to load and unload materials and reduce personnel fatigue.
- Adopt THK made in Japanese, the super-heavy-duty roller-type linear guide for ensuring dynamic accuracy and durability.
Special Spindle Specifications
| MODEL | S24 |
|---|---|
| Travel (X / Y / Z) | 1000 x 600 x 500 mm |
| Cutting Feedrate (X / Y / Z) | 20 m/min |
| Rapid Feedrate (X / Y / Z) | 30 m/min |
| Table Area | 1100 x 600 mm |
| Max. Spindle Speed | 24,000 rpm |
| Spindle Type | Built-in |
| Bearing Lubrication | Oil-Air |
| Spindle Cooling | Water-Cooling |
| Spindle Tapper | HSK-A63 |
| Magazine loading capacity | 24 tools |
